Superior Protection for HEV & EV High Voltage Cables
The outstanding cut-through resistance of our double-layer self-closing sleeve makes it an ideal solution for hybrid-electric (HEV) and electric vehicle (EV) cable protection.
In crash or extreme operating conditions, the sleeve helps isolate high-voltage cables from the vehicle’s conductive chassis, enabling manufacturers to meet stringent automotive safety standards while ensuring long-term reliability.
Lightweight, Flexible & Easy to Install
Despite its robust construction, the sleeve maintains a lightweight and highly flexible structure, allowing easy cable routing without increasing harness bulk or vehicle weight.

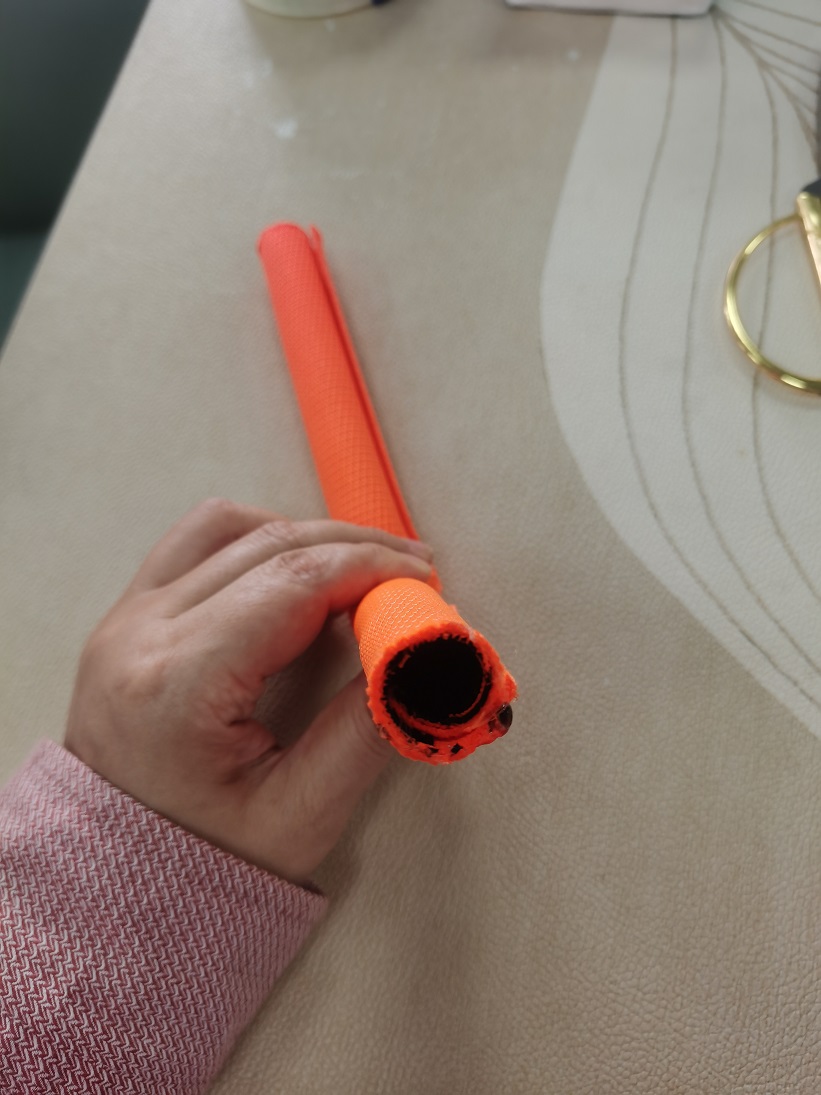

The self-closing (self-wrapping) design enables:
-
Quick installation without disconnecting connectors
-
Easy inspection, maintenance, or rework
-
Secure closure around cables and wire bundles
Key Performance Properties
-
Temperature Rating:
Continuous operation up to +150°C (+302°F) -
Flammability:
SAE J369 – Self-extinguishing -
Low Temperature Flexibility:
BH 100-016A – Pass at -40°C -
Chipping Resistance:
SAE J400 – Pass -
Dynamic Cut-Through Resistance:
ASTM D3032-04, Section 22 (Modified)
Average resistance: 650 N -
Fluid Resistance:
D47 1924 – Pass
Color Options for High Voltage Identification
To support safety and easy identification in vehicle wiring systems, our double-layer self-closing sleeve is available in:
-

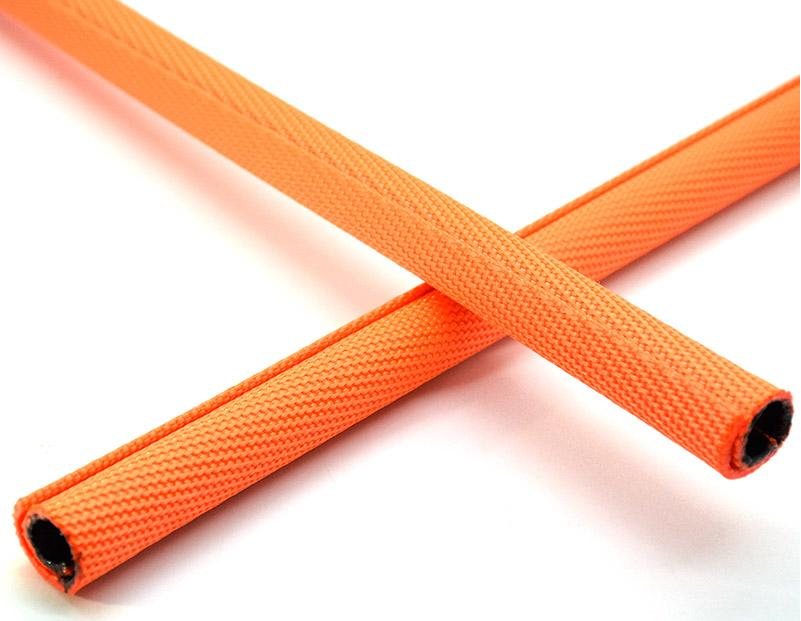

Orange – for high-voltage HEV / EV cables
-
Black – for standard automotive and industrial applications
Typical Applications
-
HEV / EV high-voltage cable protection
-
Automotive wiring harnesses
-
Power distribution cables
-
Areas requiring high cut-through and abrasion resistance
-
Crash-sensitive cable routing zones
Why Choose Ritch Double Layer Self-Closing Sleeve?
-
Excellent cut-through protection
-
Proven compliance with automotive industry standards
-
Lightweight, flexible, and durable design
-
Easy installation with a self-wrapping structure
-
Reliable solution for high-voltage cable safety
